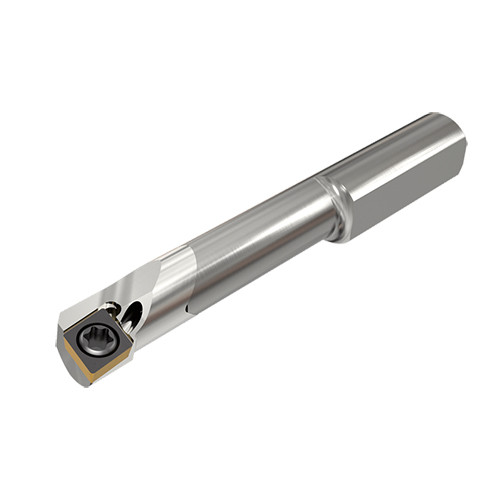

PICIN E05-T20-SCLCR-03
Boring Bar; 0.197″ Shank Dia. × 0.177″ Min Bore Dia. × 0.79″ LU × 1.378″ LF

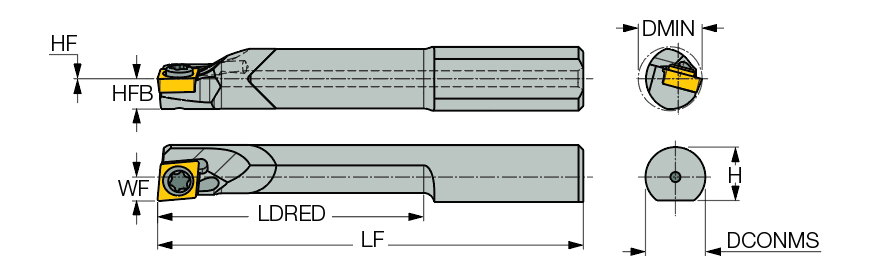

| Connection Diameter Machine Side (DCONMS) | 0.197″ | Usable Length (LU) | 0.79″ |
| Minimum Bore Diameter (DMIN) | 0.177″ | Shank Height (H) | 0.177″ |
| Functional Length (LF) | 1.378″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Rake Angle Axial (GAMP) | 0 Degrees |
| Application | | Int. 80° Diamond 95° Approach | | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 0.073″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CCGT 03X101-F1P | Measurement Type | Inch |
Product Features
| Family Description | Solid carbide PICCO tools carrying 80° rhombic inserts with a 7° positive flank for .177″ minimum bore diameter. | Country of Origin | Japan |
Shipping Info
Package Weight
25
