SNGA 433S-4MT BI05HC
| Applicable Material | | Hard Materials | | Grade | BI05HC |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Fixing Hole Diameter (D1) | 0.217″ |
| Insert Style | SNGA | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0472″ | Min D.O.C. | 0.002″ |
| Insert Size | 433 | Depth of Cut Maximum (APMX) | 0.012″ |
| Cutting Edge Length (L) | 1/2″ | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Body Material | Carbide |
Product Features

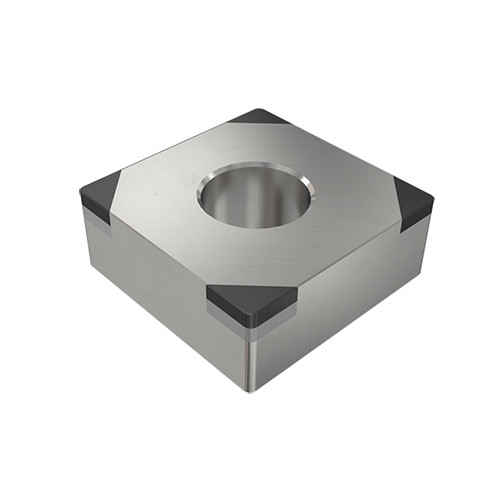

| Family Description | Negative square inserts with single 4 CBN mini tips for hardened steel and cast iron | Country of Origin | Germany |
Shipping Info
Package Weight
14
