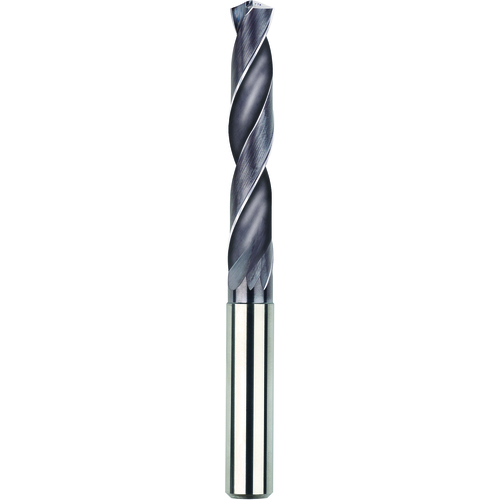

5603 10 MM 8XD COOLANT
| Drill Bit Size / Cutting Diameter (DC) | 10 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10 mm | Tool Type | High Performance Carbide Drill |
| Length Group | 8xD | Flute Type | Helical |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Cast Iron | | Series/List # | 5603 |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 95 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 95 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 142 mm |
| Functional Length (LF) | 95 mm | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Feature | Single Margin Drill |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Shank Standard | h6 | Body Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Weight
0.262
