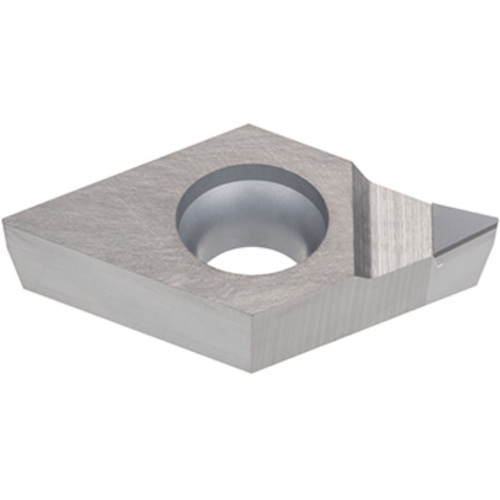

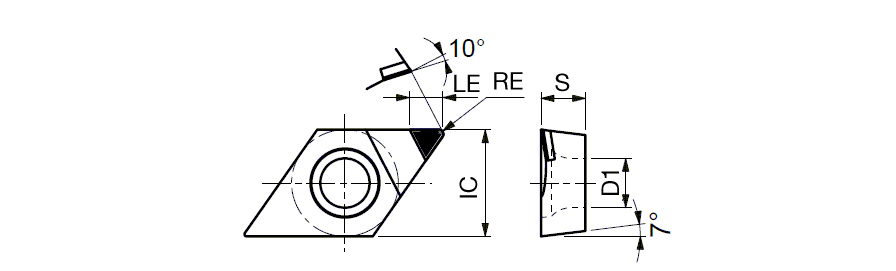

1QP-DCMT 21.50.5F DX160
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.002″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0394″ |
| Corner Radius (RE) | 0.0079″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.307″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCD | Chip Breaker Type | BR-DIA |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | DX160 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Cutting Edge Effective Length (LE) | 0.098″ |
| Tool Type | Turn Ultra hard Inserts |
Product Features
| Family Description | Positive 7 deg relief angle, M class, 55 deg rhombic PCD insert | Country of Origin | Japan |
Shipping Info
Package Weight
0
