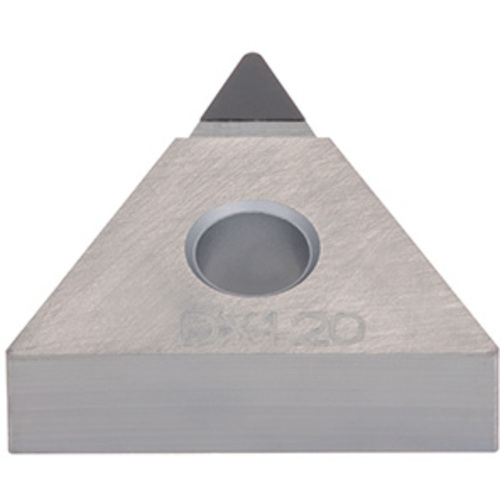

1QP-TNMM 332F DX160
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.002″ |

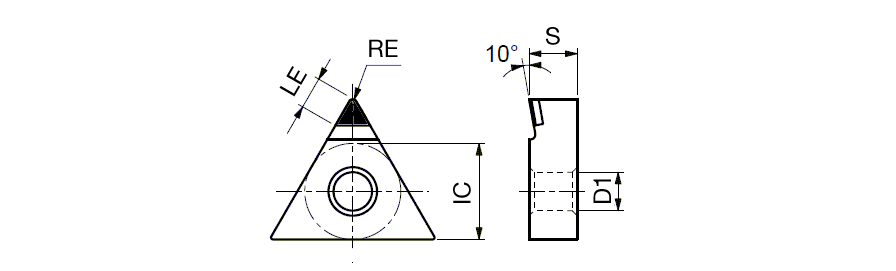

| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.0394″ |
| Cutting Edge Length (L) | 0.65″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCD | Chip Breaker Type | BR-DIA |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | DX160 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Edge Effective Length (LE) | 0.083″ |
Product Features
| Family Description | Negative relief angle, M class, triangular PCD insert | Country of Origin | Japan |
Shipping Info
Package Weight
0
