DCN0216-067-0236-3D-PICCO
Drill; 0.217″ Dia. × 0.217″ Min. Dia. × 0.236″ Max. Dia. × 0.236″ Shank Dia. × 1.687″ OAL × 0.7012″ LU × 0.587″ Shank Length ; Weldon Shank

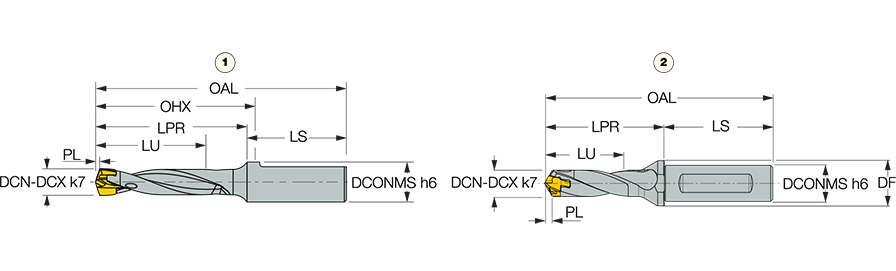

| Cutting Diameter (DC) | 0.217″ | Overall Length (OAL) | 1.687″ |
| Usable Length (LU) | 0.7012″ | Shank Length (LS) | 0.587″ |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Master Insert Identification (MIID) | ICP 055 |
| Insert Seat Size Code (SSC) | 5.5 | Point Length (PL) | 0.03188″ |
| Cutting Diameter Minimum (DCN) | 0.217″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.236″ | Decimal Equivalent | 0.217″ |
| Protruding Length (LPR) | 1.1″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features

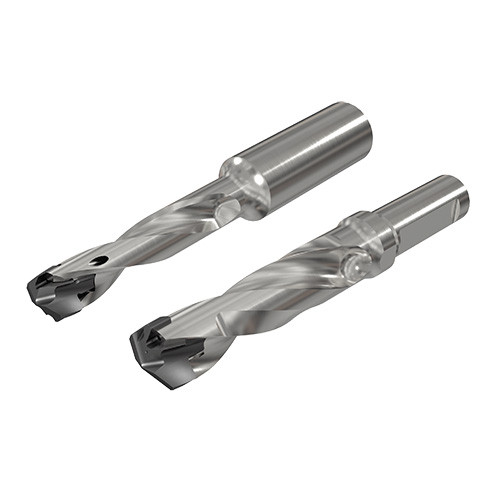

| Family Description | SUMOCHAM 3xD drills with exchangeable heads, PICCO connection, and internal coolant holes. The DNC-PICCO drill can accommodate any of the SUMOCHAM drilling heads for various applications and materials | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
16
