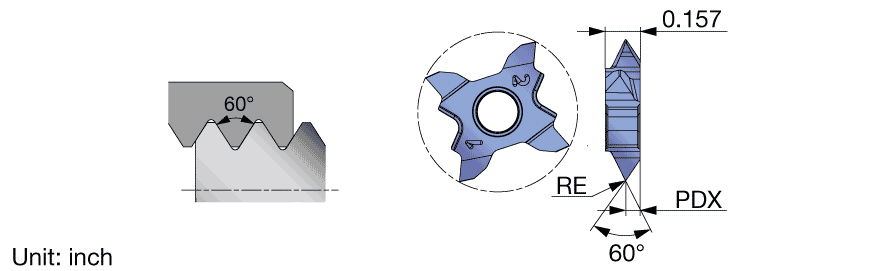

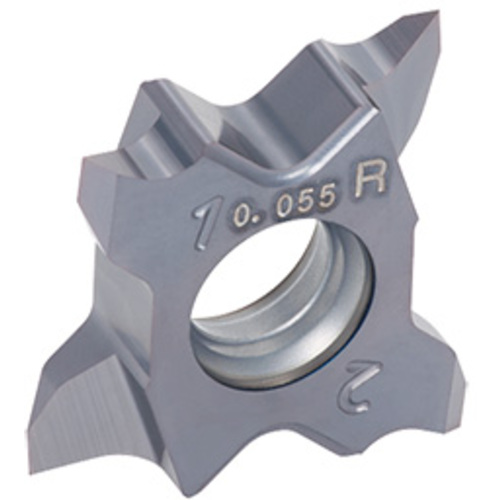

TCT18FR-60A-010 SH7025
| Corner Radius (RE) | 0.0039″ | Thread Pitch Minimum (TPN) | 1 mm |
| Grade | SH7025 | Thread Pitch Maximum (TPX) | 2 mm |
| Coating | TiAlN+TiCN | Threads per Inch Maximum (TPIX) | 25 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 12 |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | For external 60 deg general purpose threading, Partial profile insert | Country of Origin | JAPAN |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.000
