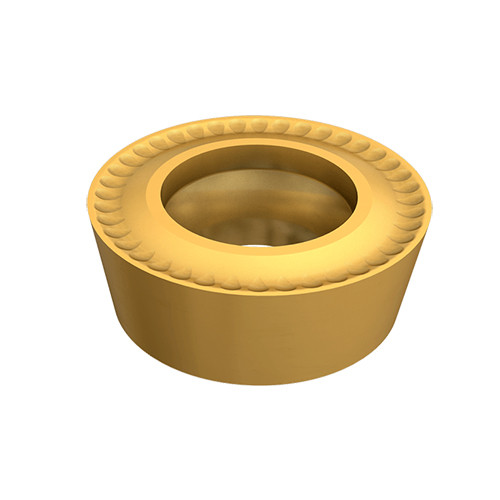

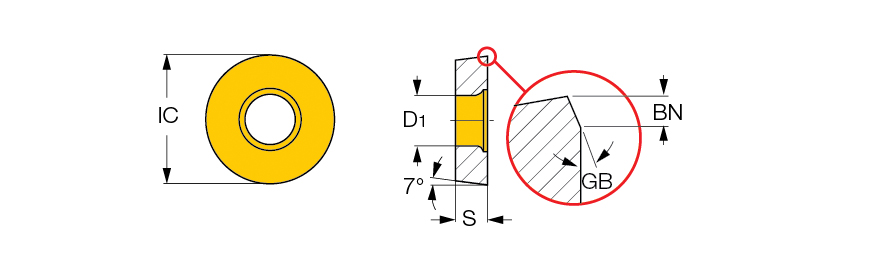

RCMT 2507M0-SR IC8150
| Applicable Material | | Steel | Cast Iron | | Fixing Hole Diameter (D1) | 0.303″ |
| Application | | Ext. Round Face & Turn | Y Axis Variable Approach angle | | Tool Type | Turn Positive Inserts |
| Insert Style | RCMT | Min D.O.C. | 0.157″ |
| Insert Size | 250 | Depth of Cut Maximum (APMX) | 0.394″ |
| Insert Thickness (S) | 0.313″ | Min. Turning Feed (ft(min)) | 0.01574 ″/rev |
| Inscribed Circle Diameter (IC) | 0.984″ | Max. Turning Feed (ft(max)) | 0.05511 ″/rev |
| Cutting Edge Material | Carbide | Clearance Angle Major (AN) | 7 Degrees |
| Coating | TiCN+Al2O3+TiCN+TiN | Measurement Type | Inch |
| Grade | IC8150 | Body Material | Carbide |
Product Features
| Family Description | Round 7° positive flank inserts for medium profiling on a wide range of materials. Designed for machining bearing steel. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.101
