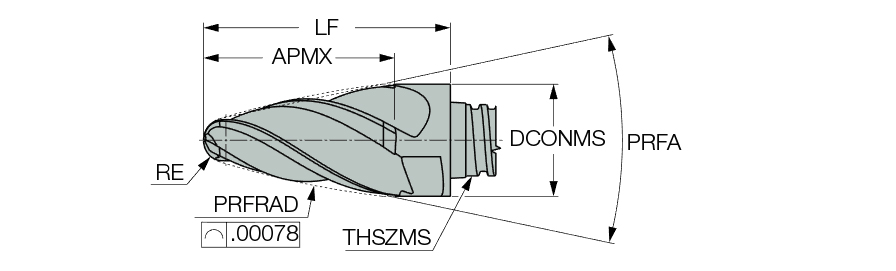

MM EOBA312R06R315A50-4T05 IC08
End Mill Head; 0.115″ Dia. × 0.531″ LOC × 0.312″ Shank Dia. × 0.988″ OAL ; 4 FL ; T05 ; Carbide ; Uncoated ; IC08
| Application | | Profiling | | Overall Length (OAL) | 0.988″ |
| Cutting Diameter (DC) | 0.115″ | Grade | IC08 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Flute Count (NOF) | 4 | Profile Angle (PRFA) | 24 Degrees |
| Corner Radius (RE) | 0.06″ | Tool Cutting Edge Angle (KAPR) | 78 Degrees |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 0.312″ | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.531″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.312″ | Body Material | Ceramic |
| Functional Length (LF) | 0.709″ | Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
Product Features
| Family Description | Interchangeable Oval-Shaped (Barrel) Solid Carbide Heads for 3D Aluminum Profiling. For Semi-Finish & Finishing Applications. | Country of Origin | Israel |
Shipping Info
Package Weight
14.5
