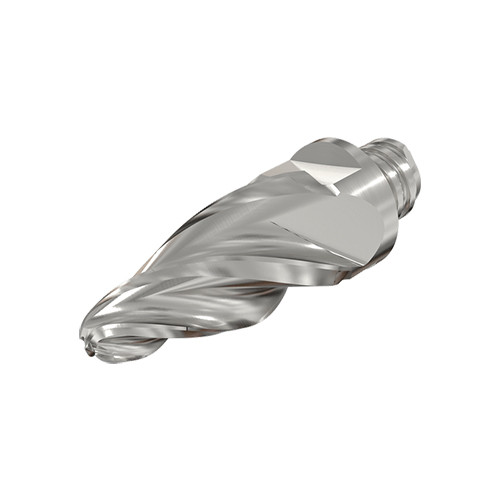

MM EOBA12R2.0R75A21-4T08 IC08
End Mill Head; 3.77 mm Dia. × 21.3 mm LOC × 12 mm Shank Dia. × 34.95 mm OAL ; 4 FL ; T08 ; Carbide ; Uncoated ; IC08

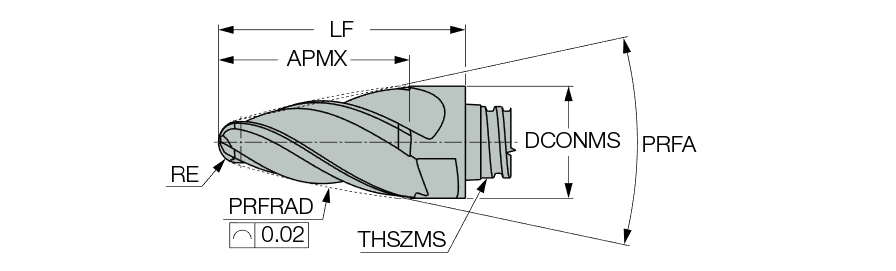

| Application | | Profiling | | Overall Length (OAL) | 34.95 mm |
| Cutting Diameter (DC) | 3.77 mm | Grade | IC08 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Flute Count (NOF) | 4 | Profile Angle (PRFA) | 24 Degrees |
| Corner Radius (RE) | 2 mm | Tool Cutting Edge Angle (KAPR) | 78 Degrees |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 12 mm | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 21.3 mm | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Body Material | Carbide |
| Functional Length (LF) | 27 mm | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
Product Features
| Family Description | Interchangeable Oval-Shaped (Barrel) Solid Carbide Heads for 3D Aluminum Profiling. For Semi-Finish & Finishing Applications | Country of Origin | Israel |
Shipping Info
Package Weight
0.071
