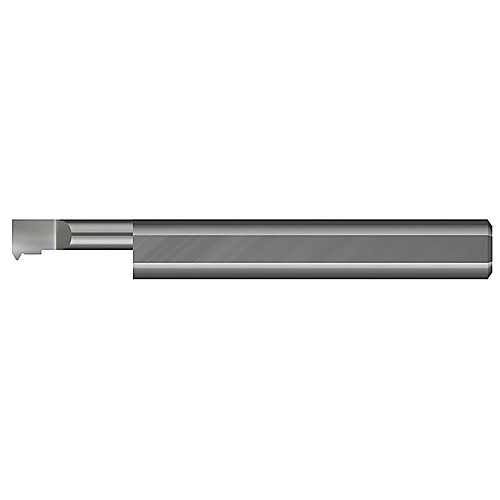

RH .3320″X1″X.0387″X2″
| Overhang Minimum (OHN) | 0.0387″ | Overall Length (OAL) | 2″ |
| Functional Width (WF) | 0.31″ | Minimum Bore Diameter (DMIN) | 0.332″ |
| Cutting Direction (HAND) | Right Hand | Threads per Inch (TPI) | 14 |
| Cutting Edge Material | Carbide | Cutting Length | 1″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Thread Size | 7/16″ - 14 |
| Thread Angle | 60 Degrees | Internal/External | Internal/External |
| Coating | Uncoated | Body Material | Carbide |
| Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.1
