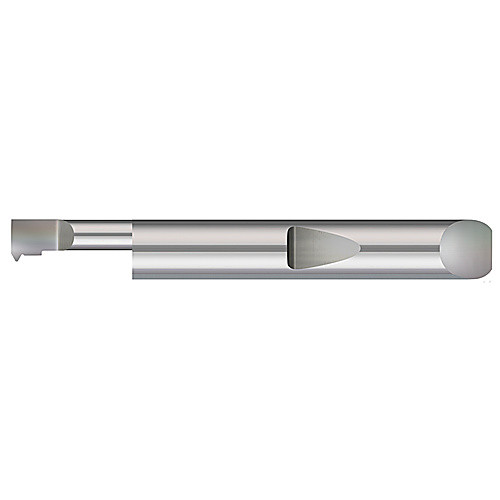

QC RH 6MMX22MMX.677MM
| Thread Standard | Metric | Coating | Uncoated |
| Thread Pitch (TP) | 1.25 mm | Measurement Type | Metric |
| Overhang Minimum (OHN) | 0.677 mm | Overall Length (OAL) | 2-1/2″ |
| Functional Width (WF) | 5.5 mm | Minimum Bore Diameter (DMIN) | 6 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Length | 22 mm |
| Cutting Edge Material | Carbide | Thread Size | M8 × 1.25 |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Internal/External | Internal/External |
| Thread Angle | 60 Degrees | Body Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.1
