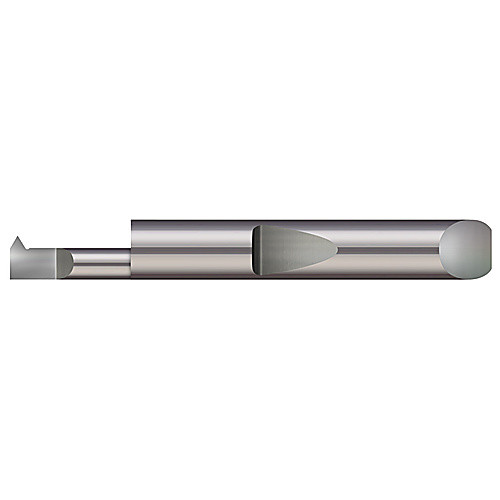

QC LH .252″X.75″X.055″X2″
| Threads per Inch Minimum (TPIN) | 10 | Coating | Uncoated |
| Thread Standard | UN | Measurement Type | Inch |
| Threads per Inch Maximum (TPIX) | 48 | Overall Length (OAL) | 2″ |
| Overhang Minimum (OHN) | 0.055″ | Minimum Bore Diameter (DMIN) | 0.252″ |
| Functional Width (WF) | 0.23″ | Cutting Length | 3/4″ |
| Cutting Direction (HAND) | Left Hand | Internal/External | Internal/External |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.1
