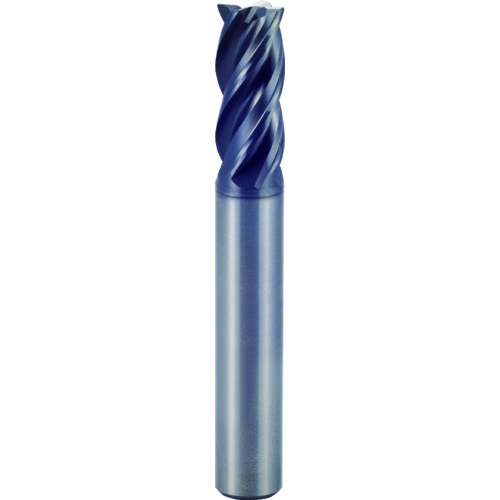

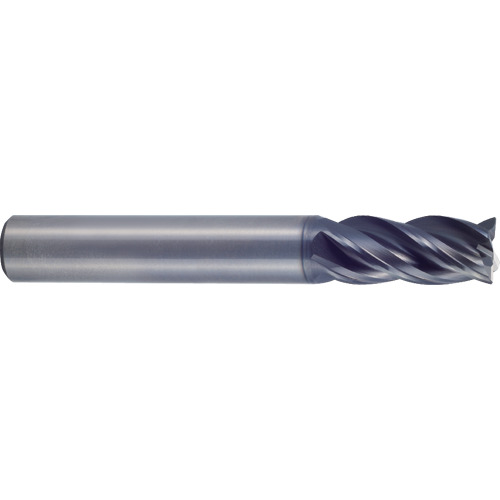

Square End Mill; 13/32″ Dia. × 15/16″ LOC × 7/16″ Shank Dia. × 2-3/4″ OAL ; 4 FL ; Carbide ; Y-Coating ; Series UGMF68
SQ End Mill; 13/32″ Dia. × 15/16″ LOC × 7/16″ Shank Dia. × 2-3/4″ OAL ; 4 FL ; Carbide ; AlCrN ; Series UGMF68
| Cutting Diameter (DC) | 13/32″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 15/16″ | Tool Type | 4 Flute Standard Length |
| Overall Length (OAL) | 2-3/4″ | Decimal Equivalent | 0.4063″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlCrN | Series/List # | UGMF68 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees/37 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.194
