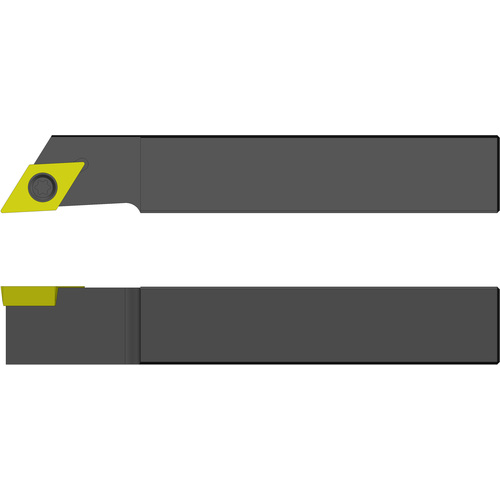

ULTRA-DEX 960 SDJCL 1212-3A 12mm Swiss Square Shank Holder Positive 55DEG Diamond KAPR 93DEG Left Hand No Coolant
Turning Toolholder; 100 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 12 mm Shank Dia. × 22 mm LH ; Left Hand ; Steel
| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 12 mm | Master Insert Identification (MIID) | DCMT 32.51 |
| Overall Length (OAL) | 100 mm | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 100 mm | Shank Type | Square |
| Head Length (LH) | 22 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Tool Type | Turning Tool Holder |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Metric |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.3
