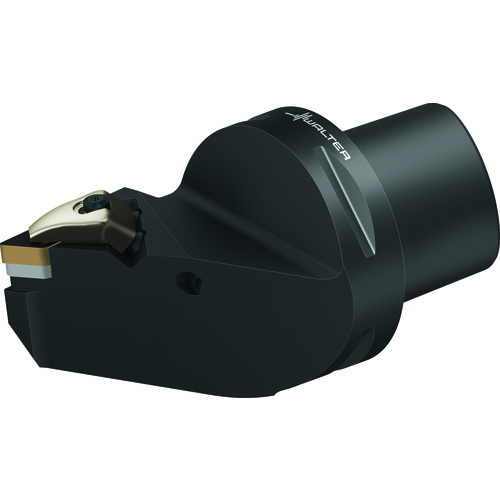

C8-DDJNL-55080-15-P Turning Tools – Rigid clamping
Turning Toolholder; 128 mm OAL × 80 mm Shank Dia. ; Left Hand ; Steel ; Series DDJNL-CAPTO-AUSSEN-P
Additional Tariff Surcharge of 8 %
| Protruding Length (LPR) | 128 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Overall Length (OAL) | 128 mm | Usable Length (LU) | 80 mm |
| Functional Length (LF) | 80 mm | Weight of Item (WT) | 4.989 lb |
| Functional Width (WF) | 55 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 80 mm | Clamping System | Wedge Lock |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Turning Tool Holder |
| Minimum Bore Diameter (DMIN) | 1100 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Series/List # | DDJNL-CAPTO-AUSSEN-P |
| Coolant Supply Property (CSP) | Coolant Thru | Shank Size (SS) | 80 mm |
| Shank Type | Capto | Connection Code Machine Side (CCMS) | C8 |
Product Features
| Country of Origin | Sweden |
