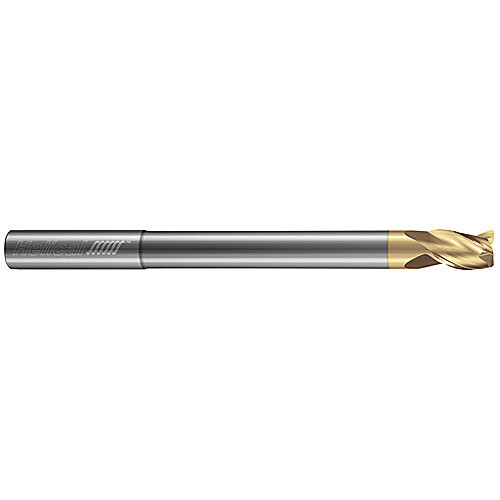

H35AL-RN-R-30750-R.030 Z+
SQ End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 0.03″ RE ; 3 FL ; Carbide ; ZrN
| Cutting Diameter (DC) | 3/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 1″ | Neck Diameter (DN) | 0.712″ |
| Overall Length (OAL) | 4″ | Neck Length (LN) | 1″ |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | ZrN | Length Group | 1.3D |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.8
