DVJNR123B-P

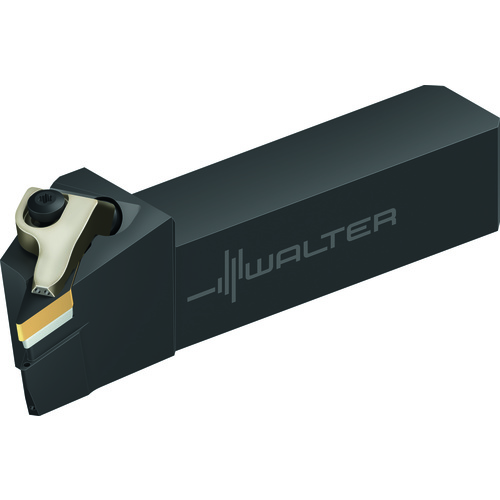

Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width ; Right Hand ; Steel ; Series DVJNR-ISO-AUSSEN-INCH-P
Additional Tariff Surcharge of 8 %
| Shank Height (H) | 3/4″ | Rake Angle Radial (GAMF) | -13 Degrees |
| Shank Width (B) | 3/4″ | Usable Length (LU) | 4.496″ |
| Protruding Length (LPR) | 4.496″ | Weight of Item (WT) | 0.529 lb |
| Overall Length (OAL) | 4-1/2″ | Body Material | Steel |
| Functional Length (LF) | 4.496″ | Clamping System | Wedge Lock |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Series/List # | DVJNR-ISO-AUSSEN-INCH-P |
| Coolant Supply Property (CSP) | Coolant Thru | Shank Size (SS) | 3/4″ |
| Shank Type | Square | Connection Code Machine Side (CCMS) | 3/4″ × 3/4″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.81
