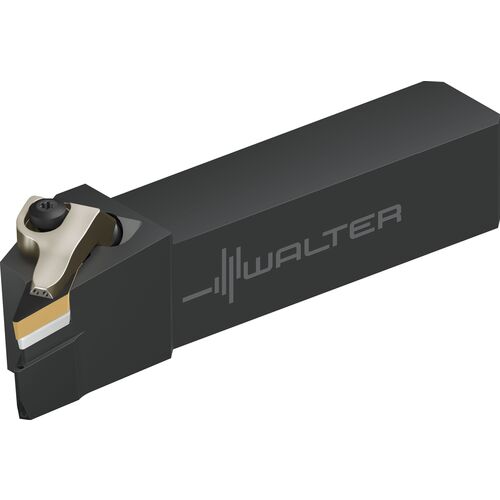

DVJBR2525X16-P
Turning Toolholder; 140 mm OAL × 25 mm Shank Height × 25 mm Shank Width ; Right Hand ; Steel ; Series DVJBR-ISO-AUSSEN-P
Additional Tariff Surcharge of 8 %
| Shank Height (H) | 25 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Shank Width (B) | 25 mm | Usable Length (LU) | 140 mm |
| Protruding Length (LPR) | 140 mm | Weight of Item (WT) | 1.367 lb |
| Overall Length (OAL) | 140 mm | Body Material | Steel |
| Functional Length (LF) | 140 mm | Clamping System | Wedge Lock |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Series/List # | DVJBR-ISO-AUSSEN-P |
| Coolant Supply Property (CSP) | Coolant Thru | Shank Size (SS) | 25 mm |
| Shank Type | Square | Connection Code Machine Side (CCMS) | 25 mm × 25 mm |
Product Features
| Country of Origin | Sweden |
