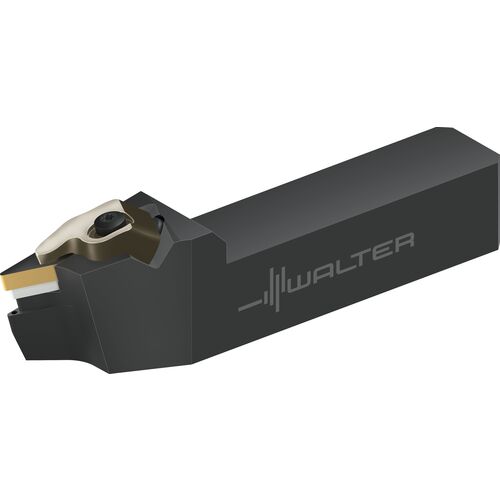

DVJNL2020X16-P
Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width ; Left Hand ; Steel ; Series DVJNL-ISO-AUSSEN-P
Additional Tariff Surcharge of 8 %
| Shank Height (H) | 20 mm | Rake Angle Radial (GAMF) | -13 Degrees |
| Shank Width (B) | 20 mm | Usable Length (LU) | 125 mm |
| Protruding Length (LPR) | 125 mm | Weight of Item (WT) | 0.926 lb |
| Overall Length (OAL) | 125 mm | Body Material | Steel |
| Functional Length (LF) | 125 mm | Clamping System | Wedge Lock |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Series/List # | DVJNL-ISO-AUSSEN-P |
| Coolant Supply Property (CSP) | Coolant Thru | Shank Size (SS) | 20 mm |
| Shank Type | Square | Connection Code Machine Side (CCMS) | 20 mm × 20 mm |
Product Features
| Country of Origin | Sweden |
