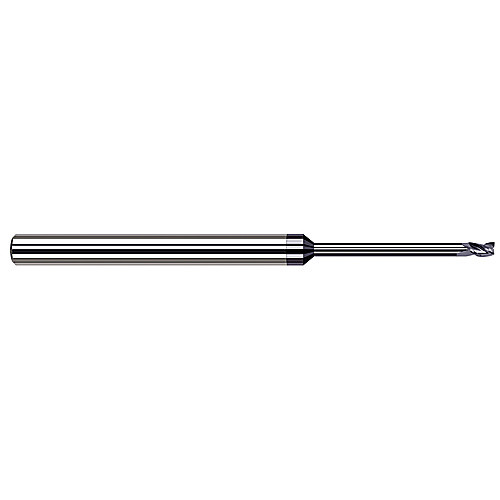

Miniature End Mills - Long Reach, Stub Flute - 0.0100″ Cutter Diameter × 0.0150″ (1/64″) Length of Cut × 0.1250″ (1/8″) Reach Carbide Square End Mill, 3 Flutes, AlTiN Coated
SQ End Mill; 0.01″ Dia. × 1/64″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; 1/8″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.01″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1/8″ |
| Depth of Cut Maximum (APMX) | 1/64″ | Length Group | 12D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.01″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.016
