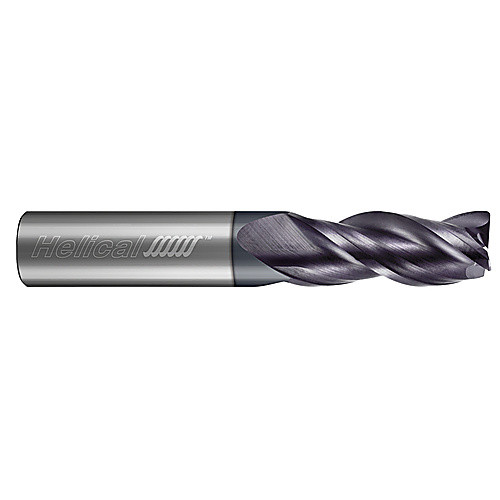

1/2X5/8X2-1/2 3FL .030C A
SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 2-1/2″ OAL ; 0.03″ RE ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Length Group | 1D |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.5″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Shank Length (LS) | 1.875″ |
| Flute Count (NOF) | 3 | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.2
