MWLNR 10-3W

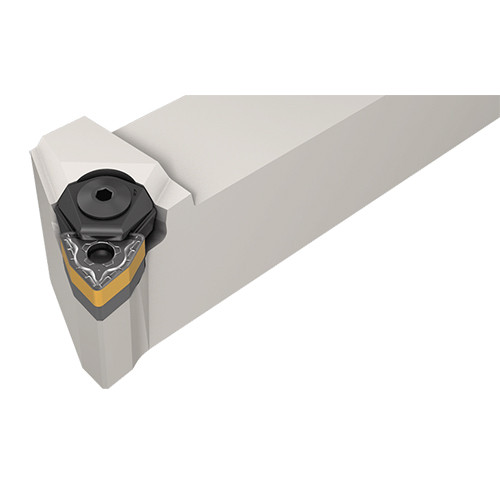

Top wedge lock external tools carrying trigon inserts.

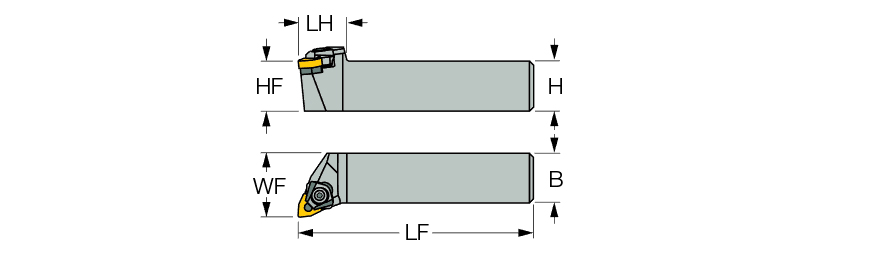

| Shank Height (H) | 5/8″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 5/8″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 4″ | Body Material | Steel |
| Head Length (LH) | 1″ | Cutting Position | External |
| Functional Width (WF) | 0.88″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | MWLNR 10-3W |
| Master Insert Identification (MIID) | WN.. 3 | Insert Style | 4″ |
| Application | | Ext. 80° Trigon 95° Approach | |
Product Features
| Family Description | Top wedge lock external tools carrying trigon inserts. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
4.56000
Package Width
1.90000
Package Height
1.90000
Package Weight
0.498
