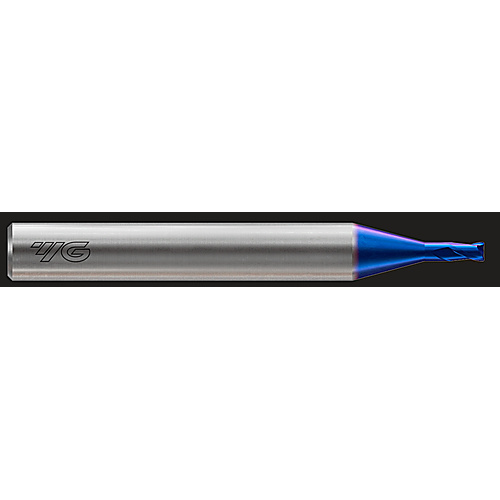

Corner Radius End Mill; 0.8 mm Dia. × 1.2 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; Blue Coating ; Series G8A52
SQ End Mill; 0.8 mm Dia. × 1.2 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 0.05 mm RE ; 2 FL ; Carbide ; Blue Coating ; Series G8A52
| Cutting Diameter (DC) | 0.8 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 2.5 mm |
| Depth of Cut Maximum (APMX) | 1.2 mm | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 50 mm | Corner Radius (RE) | 0.05 mm |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0315″ |
| Coating | Blue Coating | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | G8A52 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.519685039
Package Width
0.511811024
Package Height
0.511811024
Package Weight
0.037
