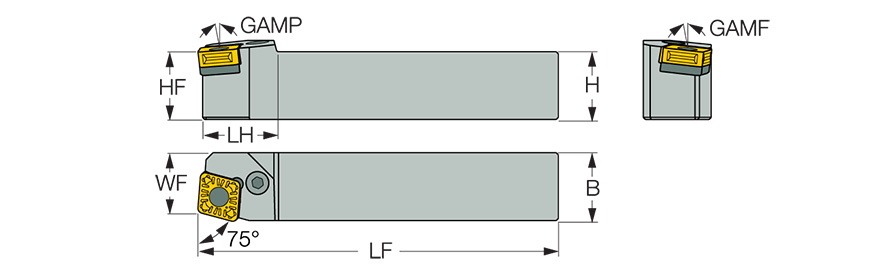

PCBOR 20-6-IQ
| Shank Height (H) | 1-1/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1-1/4″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1-1/2″ | Cutting Position | External |
| Functional Width (WF) | 1.1″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/4″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | COMG 64 | Insert Style | 6″ |
| Application | | Ext. 100° Diamond 75° Approach | |
Product Features
| Family Description | Lever-lock and dovetail pocket rigid clamping tools, carrying 10° unique double-sided negative flank 80° rhombic inserts. The tools use the 100° corner of the COMG inserts for rough turning. | Country of Origin | Israel |
Shipping Info
Package Weight
2.694
