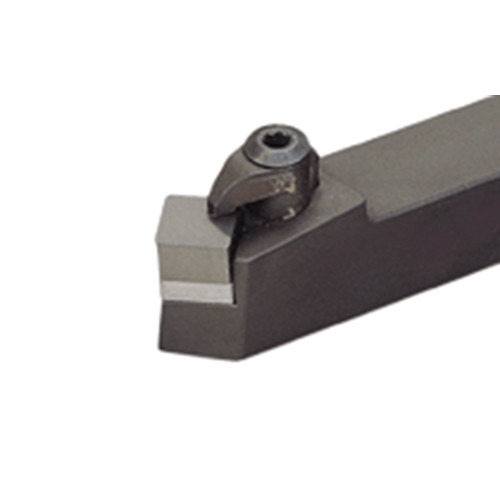

CSDNN 20-4CE

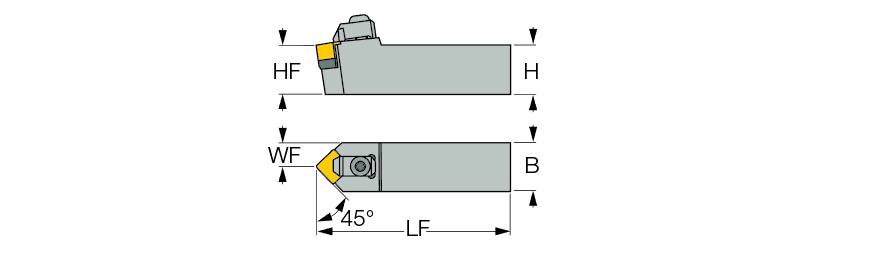

| Shank Height (H) | 1-1/4″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 1-1/4″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 7″ | Body Material | Steel |
| Functional Width (WF) | 0.63″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Master Insert Identification (MIID) | SNG 45.. | Style | SCLCL08-3A |
| Application | | Ext. 90° Square 45° Approach | | Insert Style | 7″ |
Product Features
| Family Description | 45° lead angle toolholders using square ceramic inserts. | Country of Origin | S.Korea |
Shipping Info
Package Weight
3.095
