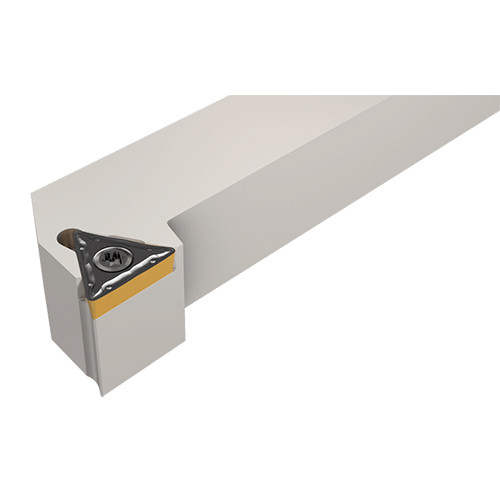

STGCL 08-2

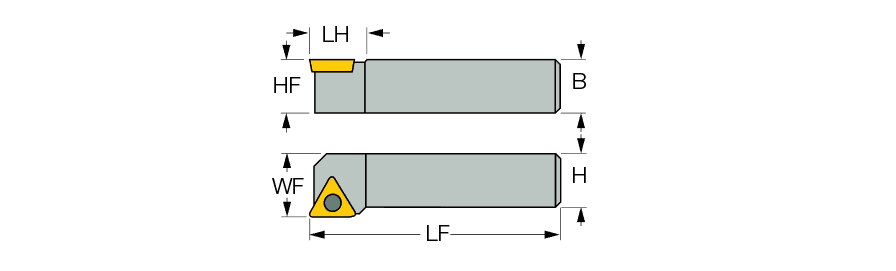

| Shank Height (H) | 1/2″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 1/2″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 3-1/2″ | Body Material | Steel |
| Head Length (LH) | 1/2″ | Cutting Position | External |
| Functional Width (WF) | 0.63″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | STGCL 08-2 |
| Master Insert Identification (MIID) | TC.. 2 | Insert Style | 3.5″ |
| Application | | Ext. 60° Triangle 91° Approach | |
Product Features
| Family Description | 91° lead angle screw lock tools carrying triangular inserts with 7° clearance angle. | Country of Origin | Israel |
Shipping Info
Package Weight
0.286
