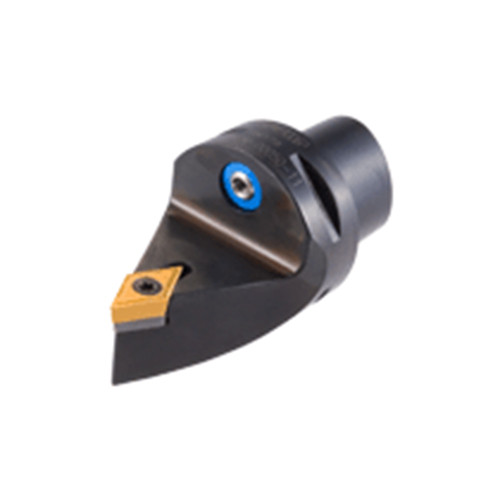

C4 SDNCN-00050-11
Turning Toolholder; 2.913″ OAL × 1.575″ Shank Dia. ; Neutral ; Steel

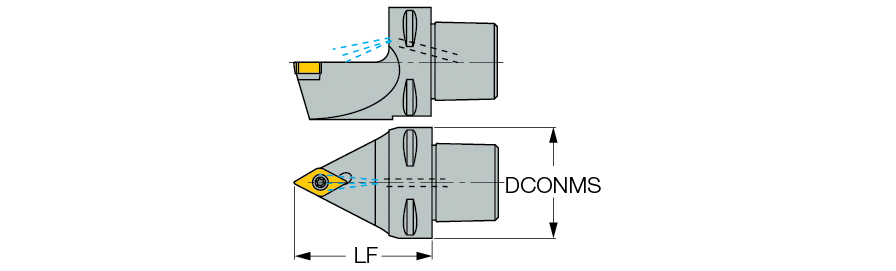

| Overall Length (OAL) | 2.913″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 1.968″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Position | External |
| Cutting Direction (HAND) | Neutral | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | DC.. 3.. | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Style | SCLCL08-3A |
| Application | | Ext. 55° Diamond 62.5° Approac | | Insert Style | 1.968″ |
Product Features
| Family Description | Screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks carrying 55° rhombic inserts with 7° clearance angle. | Country of Origin | Israel |
Shipping Info
Package Weight
0.791
