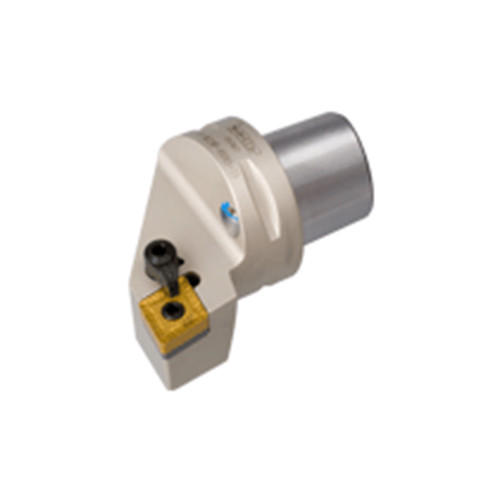

C6 MCLNL-45065-19
Turning Toolholder; 4.055″ OAL × 2.48″ Shank Dia. ; Left Hand ; Steel

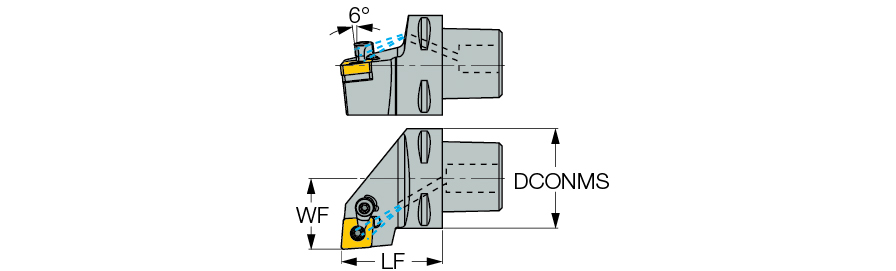

| Overall Length (OAL) | 4.055″ | Application | | Ext. 80° Diamond 95° Approach | |
| Functional Length (LF) | 2.559″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Functional Width (WF) | 1.772″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 3/4″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | CNM.-19... | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru | Insert Style | 2.559″ |
Product Features
| Family Description | 95° entering angle tools, for negative 80° inserts with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks | Country of Origin | Israel |
Shipping Info
Package Weight
2.959
