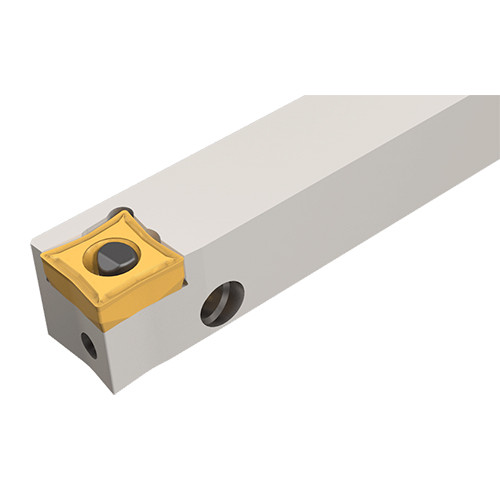

PQLCR 10-3S
Turning Toolholder; 0.59″ OAL × 5/8″ Shank Height × 5/8″ Shank Width × 0.79″ LH ; Right Hand ; Steel

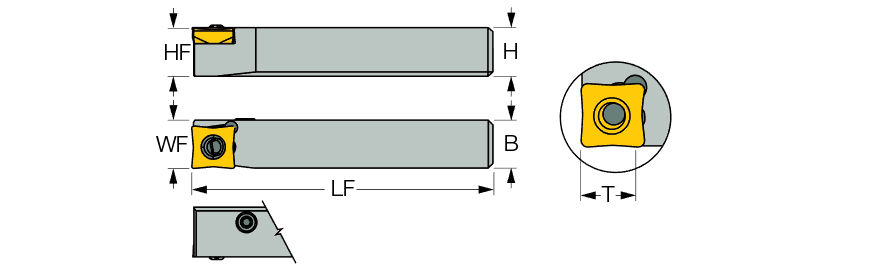

| Shank Height (H) | 5/8″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 5/8″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 0.59″ | Body Material | Steel |
| Head Length (LH) | 0.79″ | Cutting Position | External |
| Functional Width (WF) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.38″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | QCMT 3 | Insert Style | 0.59″ |
| Application | | Ext. 80° Q#MG 95° Approach | |
Product Features
| Family Description | Side lever lock tools carrying the 80° positive 4-cornered inserts for Swiss automatic machines. | Country of Origin | SWITZERLAND |
| Remarks | For T, click on More Info. |
Shipping Info
Package Weight
0.696
