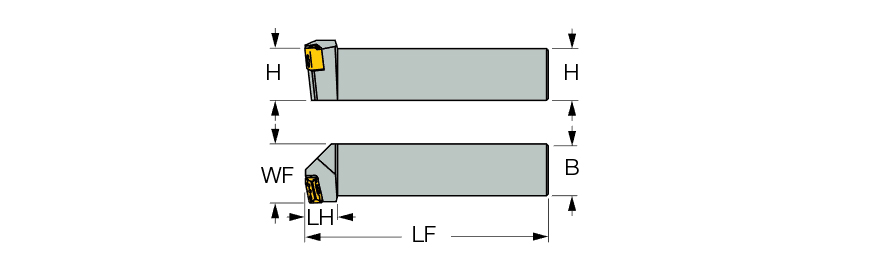

SLLNR 20-16HF
| Shank Height (H) | 1/2″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Overall Length (OAL) | 6″ | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 6″ | Measurement Type | Inch |
| Functional Width (WF) | 5/8″ | Style | SCLCL08-3A |
| Cutting Direction (HAND) | Left Hand | Insert Style | 6″ |
Product Features
| Family Description | FEEDTURN screw clamped toolholders for Fast Metal Removal in longitudinal turning: F max=.094 ipr, Ap max= .094 inch. | Country of Origin | IL |
Shipping Info
Package Weight
3.1310
