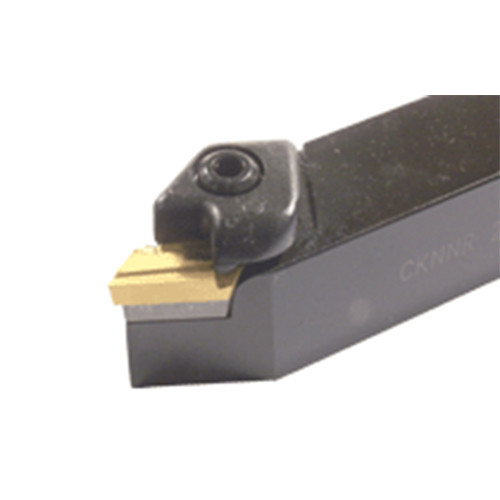

CKNNR 2525M-16

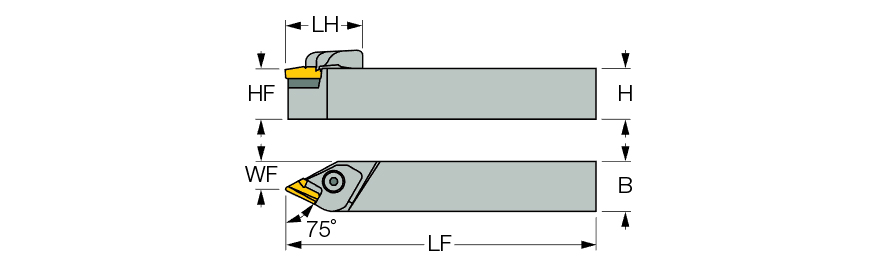

| Shank Height (H) | 25 mm | Application | | Ext. 55° Diamond 62.5° Approac | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 33 mm | Body Material | Steel |
| Functional Width (WF) | 14.4 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 9.52 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | KNUX/KNMX 1604 | Style | SCLCL08-3A |
Product Features
| Family Description | Top clamp tools with 63° entering angle carrying 55° negative parallelogram inserts | Country of Origin | Korea |
Shipping Info
Package Weight
1.572
