PSBNL 32-8
Turning Toolholder; 2″ × 2″ Shank Size × 7″ LH × 7″ OAL ; Left Hand

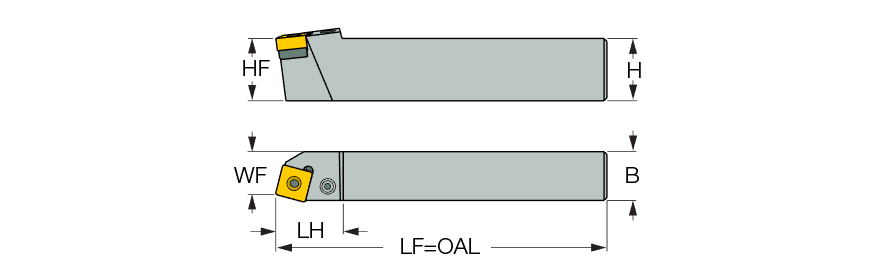

| Shank Height (H) | 2″ | Rake Angle Radial (GAMF) | -4.3 Degrees |
| Shank Width (B) | 2″ | Body Material | Steel |
| Overall Length (OAL) | 7″ | Cutting Position | External |
| Functional Length (LF) | 4″ | End Chamfer Angle (ECA) | 95 Degrees |
| Head Length (LH) | 7″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 5/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SNM..85.. | Insert Style | 7″ |
| Rake Angle Axial (GAMP) | -7.4 Degrees |
Product Features
| Family Description | Lever lock 75° lead angle turning tools carrying the ISO Negative square inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
7.603
