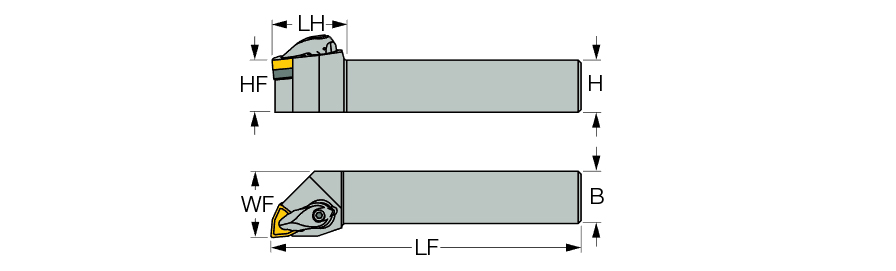

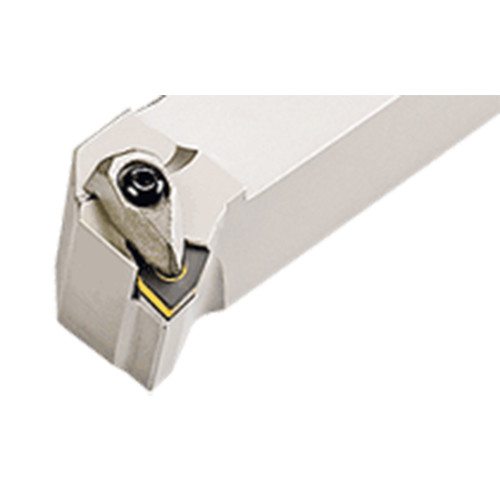

DWLNR 16-3D
| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 0.94″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | DWLNR163D |
| Master Insert Identification (MIID) | WNMG 33. | Insert Style | 6″ |
| Application | | Ext. 80° Trigon 95° Approach | |
Product Features
| Family Description | R-clamp, external 95° lead tools carrying the negative WNMG trigon inserts. | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.609
