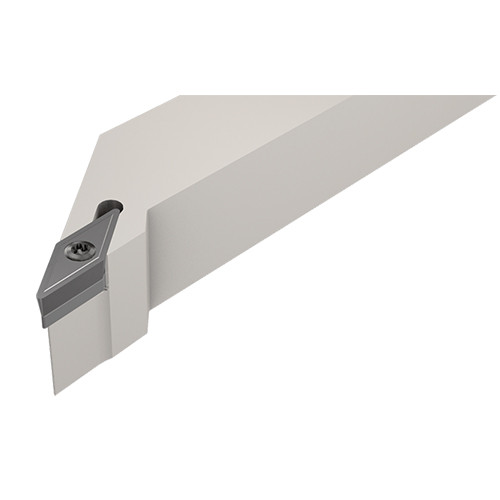

SVJCL 12-3

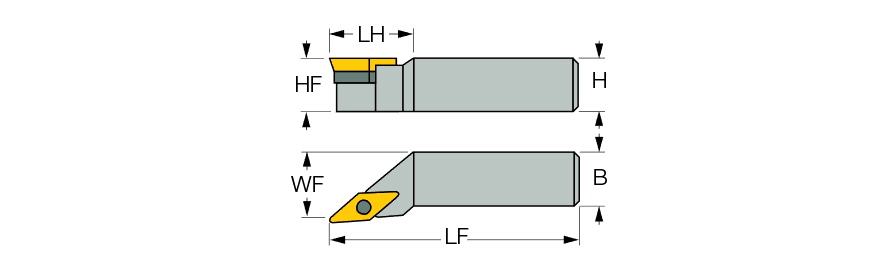

| Shank Height (H) | 3/4″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 3/4″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 1.18″ | Cutting Position | External |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SVJCL 12-3 |
| Master Insert Identification (MIID) | VC.. 3 | Insert Style | 4.5″ |
| Application | | Ext. 35° Diamond 93° Approach | |
Product Features
| Family Description | 93° lead angle screw lock tools carrying 35° diamond inserts with 7° clearance angle. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.74
