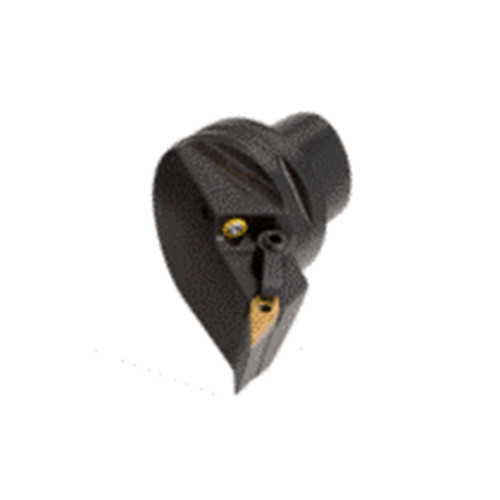

C4 MVJNL-27050-16
Turning Toolholder; 2.913″ OAL × 1.575″ Shank Dia. ; Left Hand ; Steel

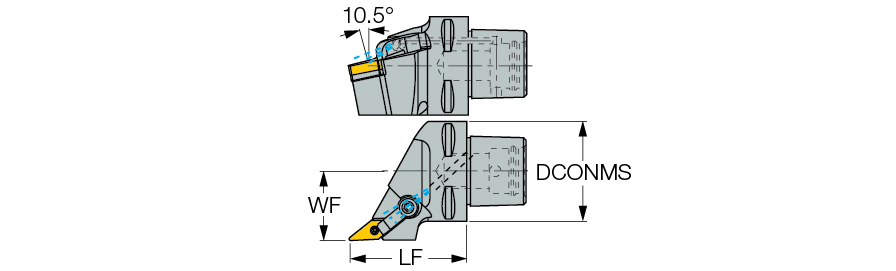

| Overall Length (OAL) | 2.913″ | Application | | Ext. 35° Diamond 93° Approach | |
| Functional Length (LF) | 1.968″ | Rake Angle Radial (GAMF) | 10.5 Degrees |
| Functional Width (WF) | 1.063″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | VN.. 1604 | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru | Insert Style | 1.968″ |
Product Features
| Family Description | 93° entering angle tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, for 35° negative rhombic inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.871
