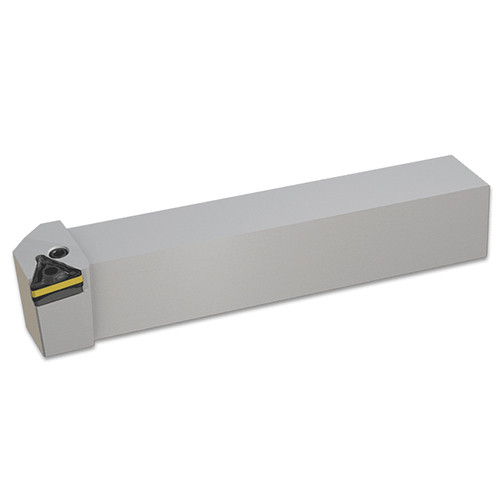

PTGNR 16-3X

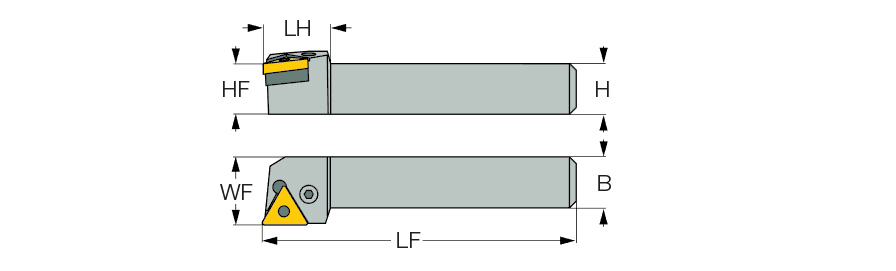

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 0.78″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | TNMX 34.. TNMG 33.. | Insert Style | 6″ |
| Application | | Ext. 60° Triangle 91° Approach | |
Product Features
| Family Description | 91° entering angle lever lock external turning tools carrying negative triangular inserts | Country of Origin | Israel |

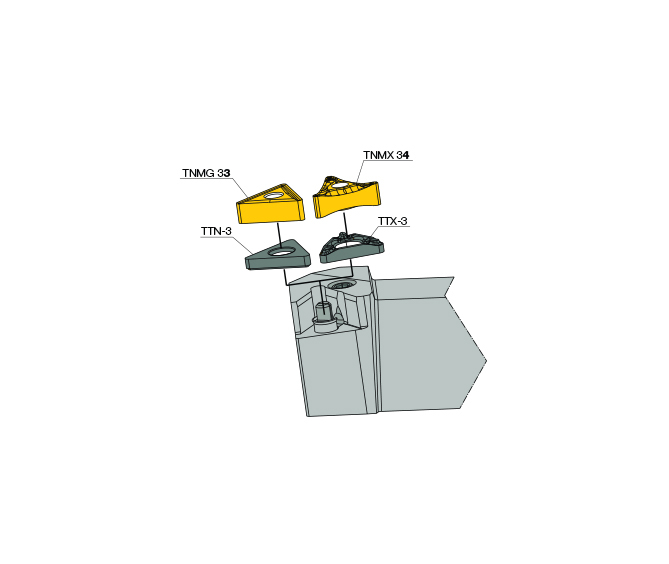

| Remarks | Use TTX 3 seat for TNMX 34. inserts and TTN 3 seat for TNMG33. inserts |
Shipping Info
Package Weight
1.766
