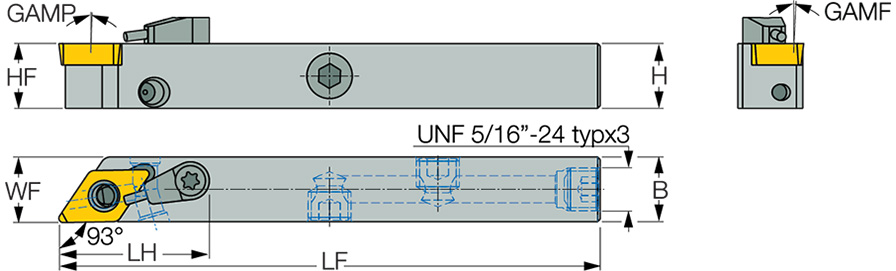

| Shank Height (H) | 5/8″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 5/8″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 4″ | Body Material | Steel |
| Head Length (LH) | 1.1″ | Cutting Position | External |
| Functional Width (WF) | 0.63″ | End Chamfer Angle (ECA) | 93 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | DCMT 3.. | Style | SCLCL08-3A |
| Application | | Ext. 55° Diamond 93° Approach | | Insert Style | 4″ |
Product Features

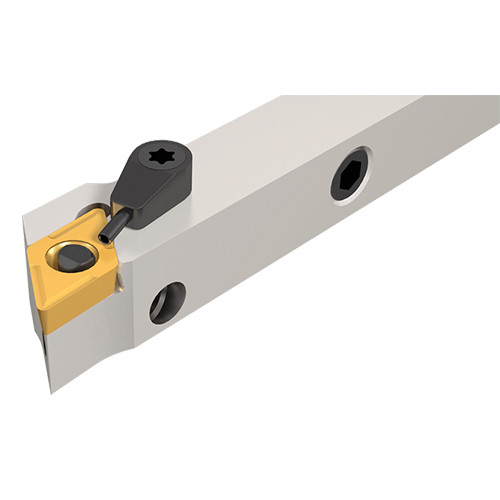

| Family Description | Lever lock tools with channels for high pressure coolant for 55° positive rhombic inserts. The tools were designed for Swiss automatic machines. | Country of Origin | Switzerland |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
0.425
