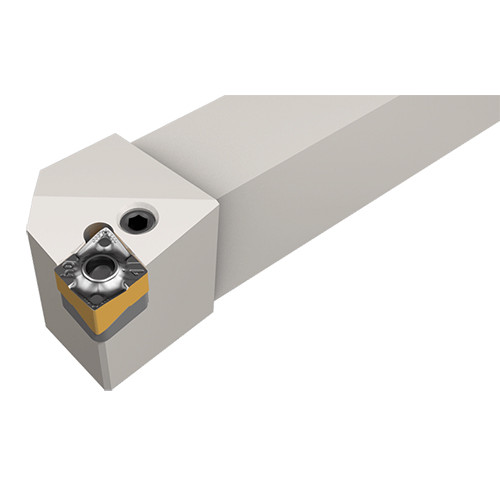

PCLNR 12-3X

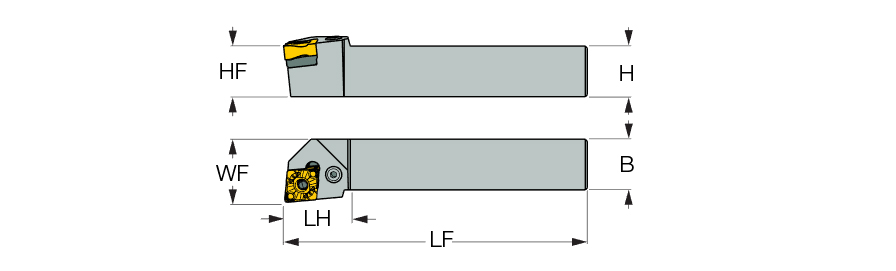

| Shank Height (H) | 3/4″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Shank Width (B) | 3/4″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 1″ | Cutting Position | External |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | PCLNR123X |
| Master Insert Identification (MIID) | CNMX 34. CNMG 33. | Insert Style | 4.5″ |
| Application | | Ext. 80° Diamond 95° Approach | |
Product Features
| Family Description | Lever lock tools carrying CNMX/CNMG 80° rhombic inserts. | Country of Origin | S.Korea |

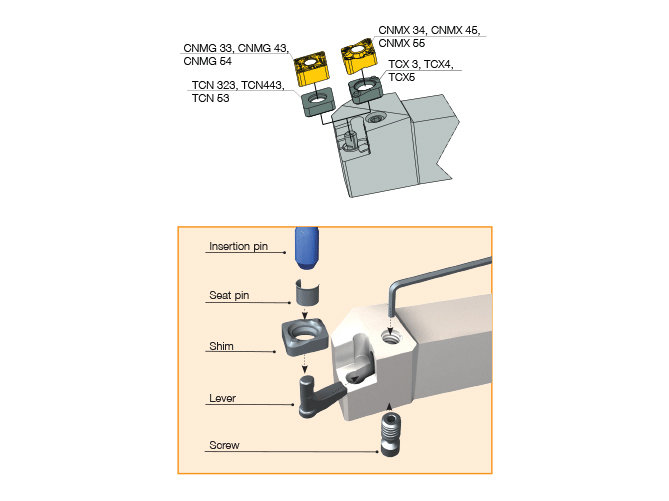

| Remarks | Supplied with TCX 3 seat for CNMX 34. inserts and TCN 323 seat for CNMG 33. inserts, TCX 4 seat for CNMX 45. inserts and TCN 443 seat for CNMG 43. inserts, TCX 5 seat for CNMX 55. inserts and TCN 53 seat for CNMG 54. inserts. |
Shipping Info
Package Weight
0.822
