PCLNR 32-8

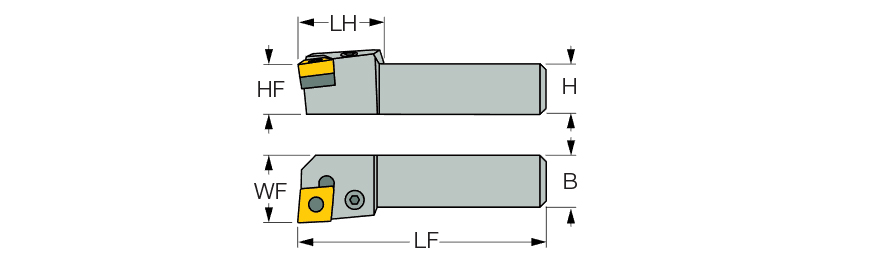

| Shank Height (H) | 2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Width (B) | 2″ | Body Material | Steel |
| Overall Length (OAL) | 7″ | Cutting Position | External |
| Functional Length (LF) | 4″ | End Chamfer Angle (ECA) | 95 Degrees |
| Head Length (LH) | 7″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 5/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CNM..86.. | Insert Style | 7″ |
| Rake Angle Axial (GAMP) | -6 Degrees |
Product Features
| Family Description | Lever lock tools carrying the 80° negative rhombic inserts. | Country of Origin | IL |
Shipping Info
Package Weight
7.9600
