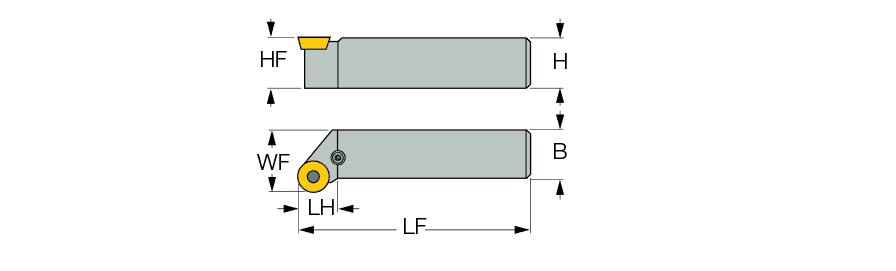

| Shank Height (H) | 2″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 2″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 8″ | Body Material | Steel |
| Head Length (LH) | 1.51″ | Cutting Position | External |
| Functional Width (WF) | 2-1/2″ | End Chamfer Angle (ECA) | 95 Degrees |
| Inscribed Circle Diameter (IC) | 1.26″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | RCMX 3209 | Style | SCLCL08-3A |
| Application | | Ext. Round Face & Turn | | Insert Style | 8″ |
Product Features
| Family Description | Lever lock tools carrying RCMX round inserts. | Country of Origin | Korea |
Shipping Info
Package Weight
8.669
