PSDNN 4040S-25

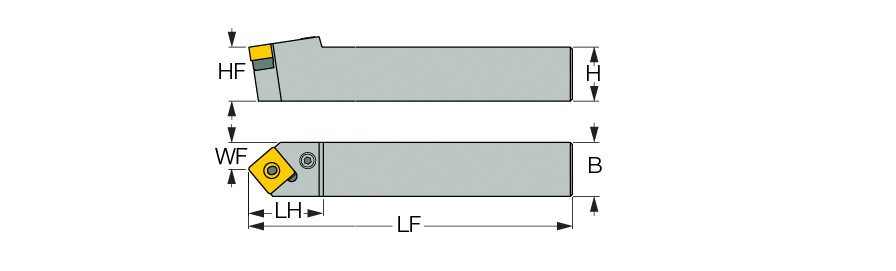

| Shank Height (H) | 40 mm | Application | | Ext. 90° Square 45° Approach | |
| Shank Width (B) | 40 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 250 mm | Rake Angle Radial (GAMF) | -8.5 Degrees |
| Head Length (LH) | 49 mm | Body Material | Steel |
| Functional Width (WF) | 20 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 25.4 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Metric |
| Master Insert Identification (MIID) | SNMG 2507 | Style | SCLCL08-3A |
Product Features
| Family Description | 45° entering angle lever lock external turning tools carrying ISO negative SNMG inserts | Country of Origin | Korea |
Shipping Info
Package Weight
6.729
