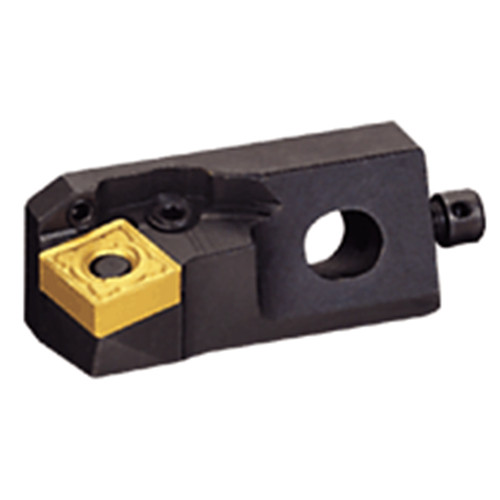

PSKNR 16CA-12
Turning Toolholder; 2.598″ OAL × 0.984″ Shank Height × 0.787″ Shank Width × 1.496″ LH ; Right Hand ; Steel

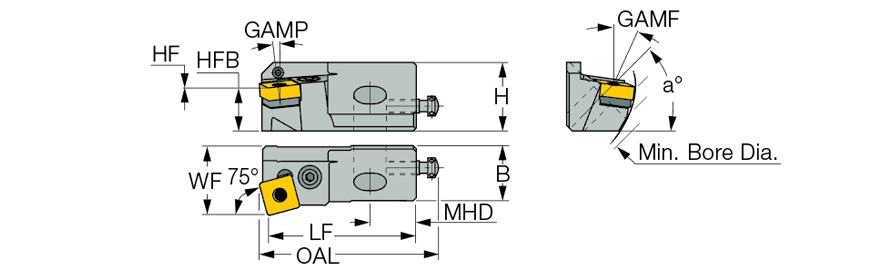

| Shank Height (H) | 0.984″ | Application | | Int. Square 75° Approach | |
| Shank Width (B) | 0.787″ | Rake Angle Axial (GAMP) | -4 Degrees |
| Overall Length (OAL) | 2.598″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Functional Length (LF) | 2.165″ | Body Material | Steel |
| Head Length (LH) | 1.496″ | Cutting Position | Internal |
| Functional Width (WF) | 0.984″ | End Chamfer Angle (ECA) | 45 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 2.362″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SNMG 1204 | Insert Style | 2.48″ |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | 75° entering angle cartridges carrying the negative square inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.406
