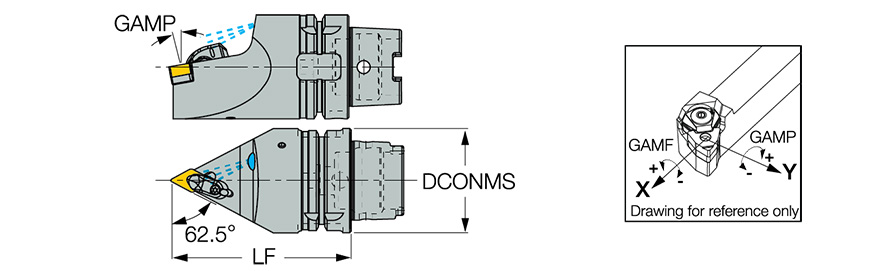

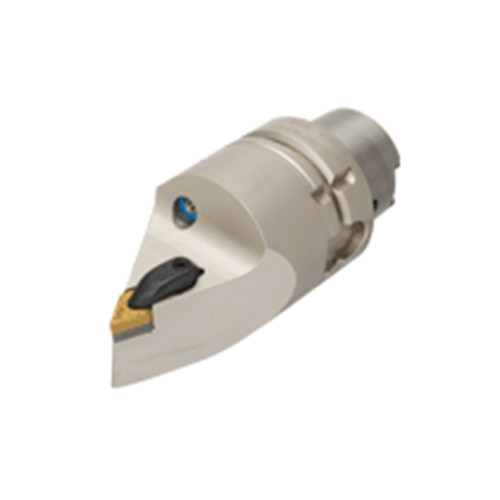

HSK A63WH DDNNN J15
Turning Toolholder; 5.591″ OAL × 2.48″ Shank Dia. ; Neutral ; Steel
| Overall Length (OAL) | 5.591″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 4.331″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Master Insert Identification (MIID) | DN..4.. | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru | Insert Style | 4.331″ |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | | Connection Code Machine Side (CCMS) | HSK |
| Rake Angle Axial (GAMP) | -10 Degrees |
Product Features
| Family Description | R-clamp, turning tools with HSK taper shank carrying negative DNMG inserts. Comply with the ICTM standard. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
4.257
