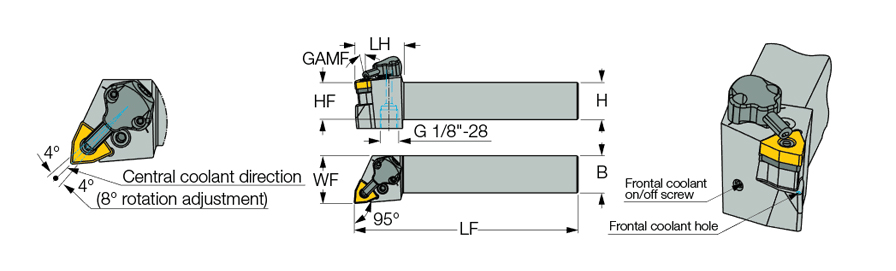

| Shank Height (H) | 1/2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Overall Length (OAL) | 7″ | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 7″ | Measurement Type | Inch |
| Functional Width (WF) | 5/8″ | Style | SCLCL08-3A |
| Cutting Direction (HAND) | Left Hand | Insert Style | 7″ |
| Master Insert Identification (MIID) | WNMG 43.. |
Product Features
| Family Description | Lever Lock toolholders for trigon inserts with channels for high pressure coolant. | Country of Origin | IL |
| Remarks | For more details click on "More Info" |
Shipping Info
Package Weight
2.5750
