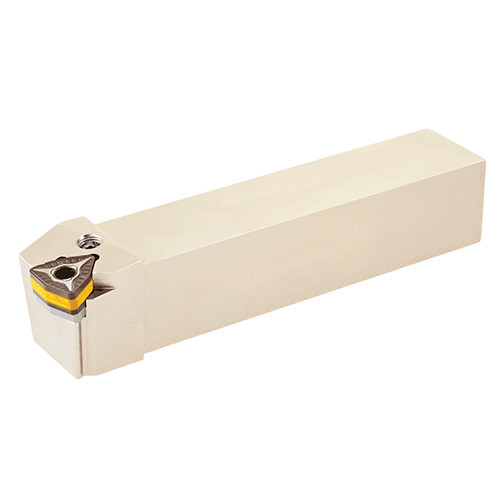

PWXOL 24-5-TF-IQ
Turning Toolholder; 7″ OAL × 1-1/2″ Shank Height × 1-1/2″ Shank Width × 1-1/4″ LH ; Left Hand ; Steel

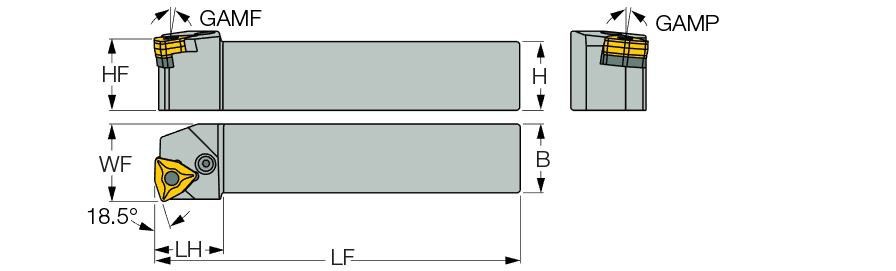

| Shank Height (H) | 1-1/2″ | Application | | Ext. Trigon 18.5° Approach | |
| Shank Width (B) | 1-1/2″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 7″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 7″ | Body Material | Steel |
| Head Length (LH) | 1-1/4″ | Cutting Position | External |
| Functional Width (WF) | 1-3/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 5/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | WOMG 55-IQ | Insert Style | 7″ |
Product Features

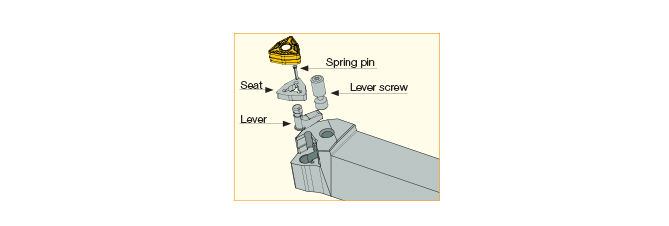

| Family Description | Lever-lock tools for fast feed at small D.O.C. longitudinal turning. | Country of Origin | Israel |
Shipping Info
Package Weight
4.621
