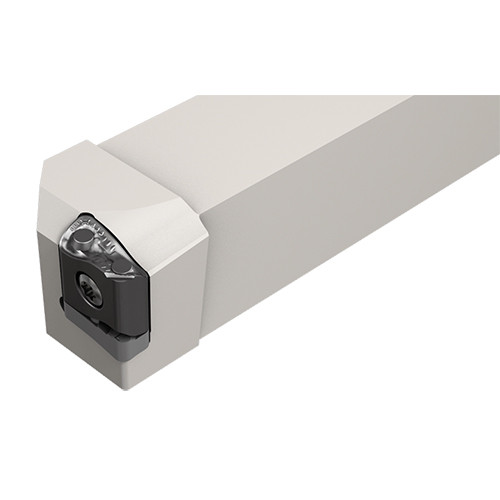

SLFNR 20-15 TANG

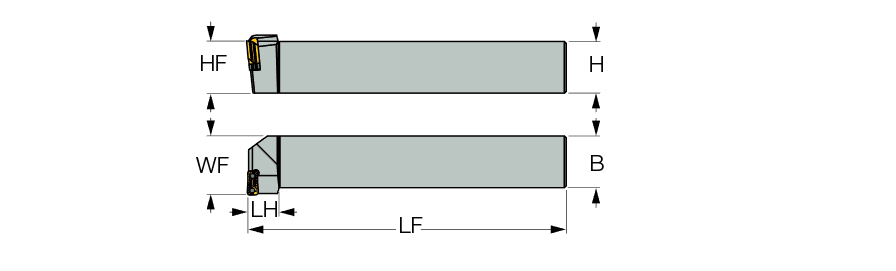

| Shank Height (H) | 1-1/4″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Width (B) | 1-1/4″ | Body Material | Steel |
| Functional Length (LF) | 6″ | Cutting Position | External |
| Head Length (LH) | 1.4″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1.45″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Application | | Ext. Tangential 93°Face Approa | | Insert Style | 6″ |
| Rake Angle Axial (GAMP) | -6 Degrees |
Product Features
| Family Description | Screw clamped toolholders for LNMX tangentially clamped inserts. Recommended for heavy face and longitudinal turning. | Country of Origin | Israel |
Shipping Info
Package Weight
2.694
