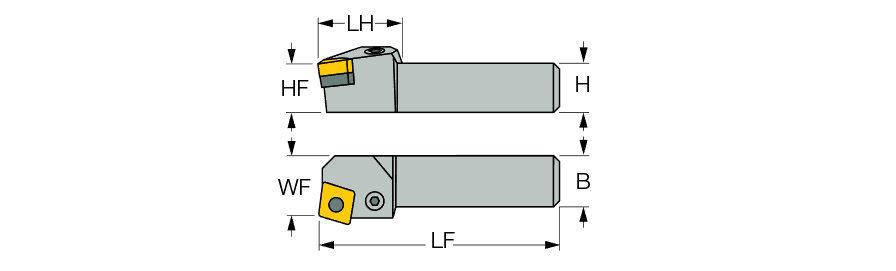

PCBNL 20-6
| Shank Height (H) | 1 1/4″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Width (B) | 1 1/4″ | Body Material | Steel |
| Overall Length (OAL) | 6″ | Cutting Position | External |
| Functional Length (LF) | 4″ | End Chamfer Angle (ECA) | 95 Degrees |
| Head Length (LH) | 6″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 5/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CN..64.. | Insert Style | 6″ |
| Rake Angle Axial (GAMP) | -6 Degrees |
Product Features
| Family Description | Lever lock tools using the 100° corner of CNMG inserts. | Country of Origin | IL |
Shipping Info
Package Weight
2.6460
