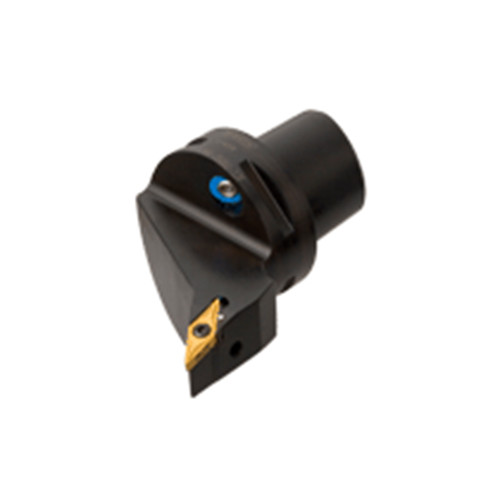

C4 SVJNR-27050-12F
Turning Toolholder; 2.913″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel

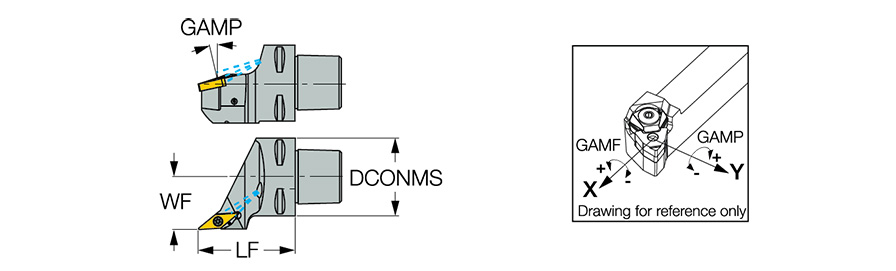

| Overall Length (OAL) | 2.913″ | Rake Angle Axial (GAMP) | -12 Degrees |
| Functional Length (LF) | 1.968″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 1.063″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 0.281″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | VN.. 12T3 | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru | Insert Style | 1.968″ |
| Application | | Ext. 35° Diamond 93° Approach | |
Product Features
| Family Description | Screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying 35° negative rhombic inserts. Wedge design for high rigidity in profiling applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.796
