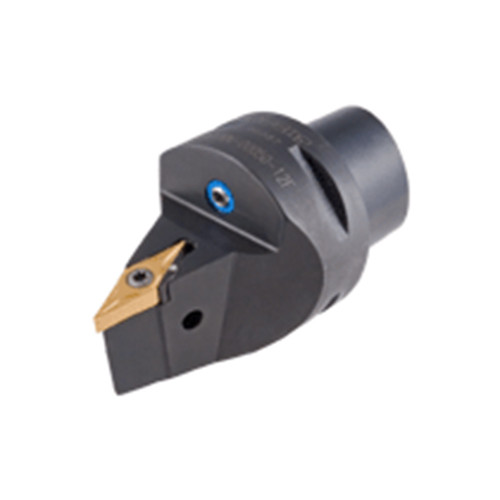

C4 SVVNN-00050-12F
Turning Toolholder; 2.913″ OAL × 1.575″ Shank Dia. ; Neutral ; Steel

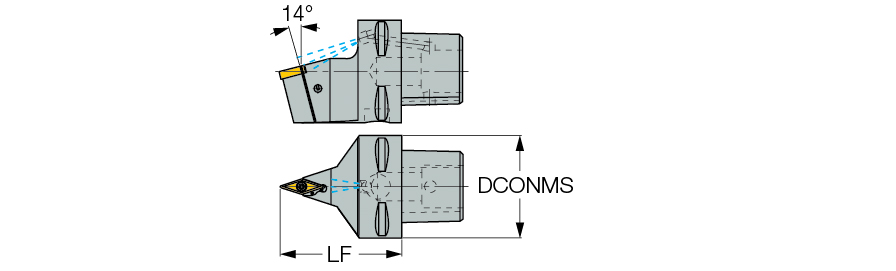

| Overall Length (OAL) | 2.913″ | Rake Angle Radial (GAMF) | 14 Degrees |
| Functional Length (LF) | 1.968″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 0.281″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Master Insert Identification (MIID) | VN.. 12T3 | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru | Insert Style | 1.968″ |
| Application | | Ext. 35° Diamond 72.5° Approac | |
Product Features
| Family Description | Screw lock 72.5° entering angle tools, for 35° negative rhombic inserts with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks. High rigidity in profiling applications due to a special wedge design | Country of Origin | Israel |
Shipping Info
Package Weight
0.800
